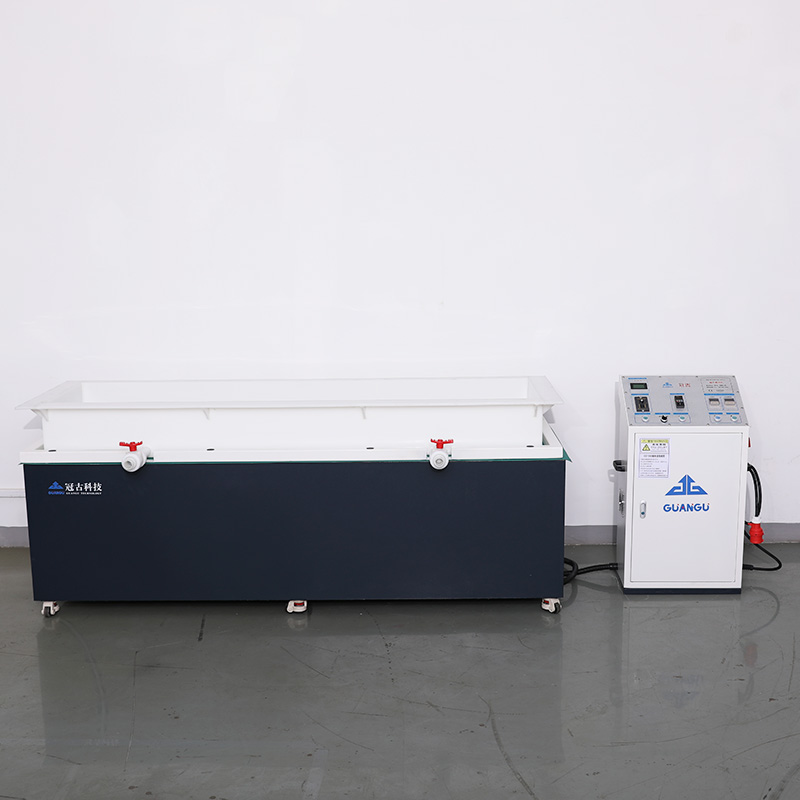

DOUBLE STATION TRANSLATIONAL MAGNETIC ABRASIVE POLISHING MACHINE GG2380

Guangu magnetic polishing machine equipment accessories: imported Siemens motor, imported Siemens inverter, N50H high temperature rubidium iron boron strong magnet

Video Hotline
+86 13328008563

Product introduction

Product Model	GG2380
Dimensions	23807201088
Grinding groove size	2200*520(drum)
Power supply	AC380v(50 60Hz)16A
Motor power	5.5KW*2
Equipment weight	660KG
Grinding capacity	50-70Kg
Operation mode	forward, reverse, and translation
Steel needle	14kg
Lapping liquid	100L
Motor speed	1400 RPM
Diameter	0.2-2.00mm

Magnetic polishing machine magnetic field distribution is uniform, high frequency rotary motion, polishing effect is more uniform, the object surface is smoother, can also achieve the cleaning effect. Magnetic grinding/magnetic polishing has no dead corner, so that all parts are completely ground.

GUANGU METAL POLISHING MACHINE

Consumables: 304 stainless steel magnetic needle, lapping fluid, brightener
Equipment accessory: siemens motor, siemens inverter, N50H High temperature resistant rubidium iron boron strong magnetic
Off-the-shelf finished goods, Can be customized according to customer requirements

Manufacturer direct supply
Quality of craftsmanship
Easy installation Easy to use
Strong magnetic lifetime warranty

Product feature PRODUCT CHARACTERISTICS

01: Metal polishing machine polishing cleaning speed, an average of 5-15 minutes of polishing and grinding；

02: Metal polishing machine is easy to operate, one person can operate more than one metal polishing machine；

03: The metal workpiece is not deformed after polishing, grinding and cleaning, and does not affect the accuracy；

04: The workpiece and magnetic grinding needle can be separated by sieve and needle separator；

05: Can remove the surface of the workpiece welding spot, oxide scale, batch front, burr, chamfer, etc., save time and effort；

Metal polishing machine PRODUCT DISPLAY

Range of application SCOPE OF USE

1. Precision metal stamping parts 2. Stainless steel parts, 304 stainless steel screws and nuts 3. Magnesium aluminum die casting 4. Zinc aluminum die casting 5. Precision spring, shrapnel parts 6. Electronic, computer and communication parts 7. Walking heart, walking knife, CNC automatic lathe parts 8. Aerospace parts, medical equipment parts
